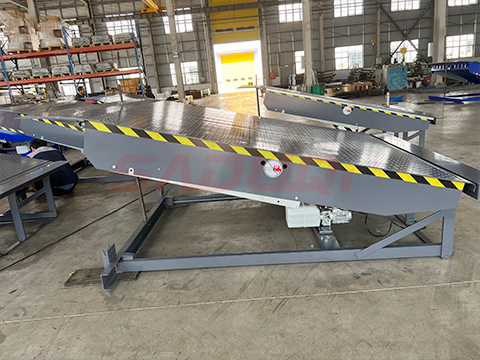

Hydraulic dock leveler is an efficient and safe unloading equipment, which is widely used in logistics parks, wharves, factories, warehouses and other places. It is mainly composed of steel structure, hydraulic device and electrical control device and other components. The product has the features of fast unloading speed, high unloading efficiency, long service life, easy operation, etc. It is one of the indispensable equipments in the modern logistics industry.

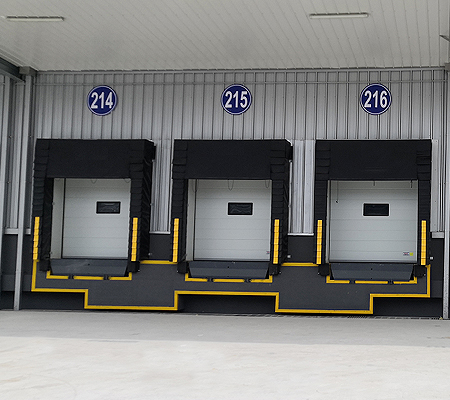

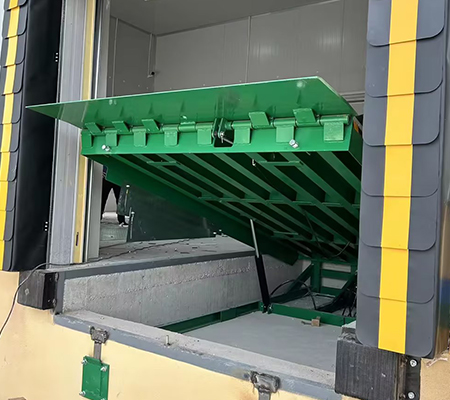

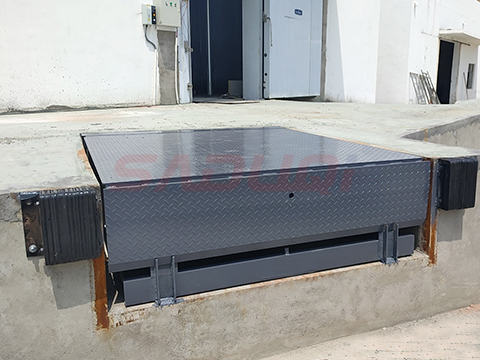

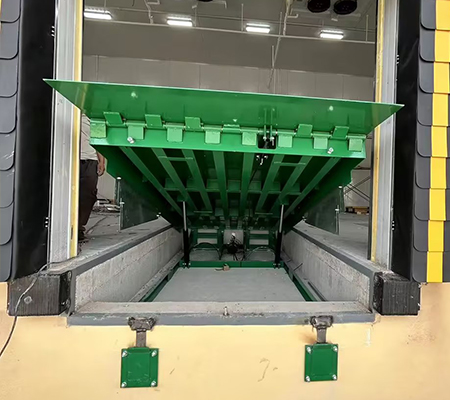

Relevant case
Technical Parametric
Application environment | Normal temperature logistics |
Load | Dynamic load 6-25 tons |
Platform width | 1830mm, 2000mm, 2130mm |
Platform length | 2000mm,2500mm,3000mm,3500mm |
Non-standard size | Can be customized |
Tongue length | Standard 400mm, another 500mm optional |
Tongue plate type | Adopting 8mm high strength nonslip patterned steel plate, different bottom reinforcement structure according to different loads. |

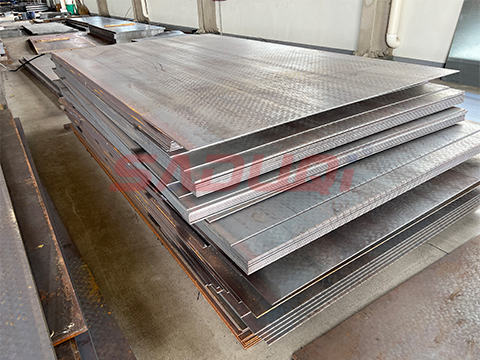

Table Structure | According to the different loads of different selection of 14mm, 16mm, 20mm thickness of high- strength non-slip patterned steel plate |
Tongue plate | Imported hydraulic system |
Hydraulic power unit | 380V/0.75Kw |
Safety Configuration | Platform fall prevention function, antitoe pinch safety protection, penetrating maintenance support bar, night self-locking protection |
Colors | Black, grey, blue, green, other colors to order |
Product Features

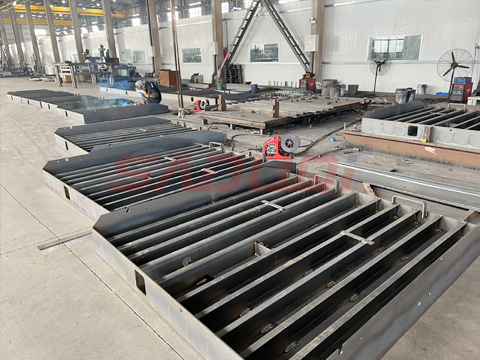

 | Swinging Lip Single plate 14mmthickness, more rugged and durable, does not produce stress cracking problems |  | Main Plate Profile It consists of 8 -12 C type steel profiles according to plate width. the structure ensures strength and resistance to torsion of the main plate |
 | Maintenance Strut The maintenance strut is to protect the workers during cleaning and repair process to ensure better safety standard |  | Piston Main piston for uppef plate and small piston for lip |
 | Safeyt Value Security block : in cese of aaccidental moving of the truck, dock leveler will be blocked with a short stroke |  | Hydraulic Unit 100% origin omported hydraulic unit high closeness, stable working |
Optional Parts
| 22OV.1PH.5OHZ | Non-standard load,sizes,colors | Lip with side flaps |
Brush\Vinyl Sea | Dual hydraulic lifting system | Open type hinge |
Galvanized treatment | Interlocking between sectional door and locked vehicle setting | 5oommm long tip board, 600mm depth base pit |
