Our industrial doors are sent all over the world, we have all the doors you want, if you need, welcome to leave a message to me

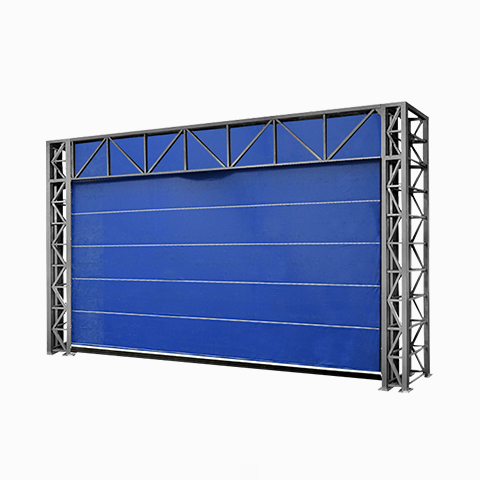

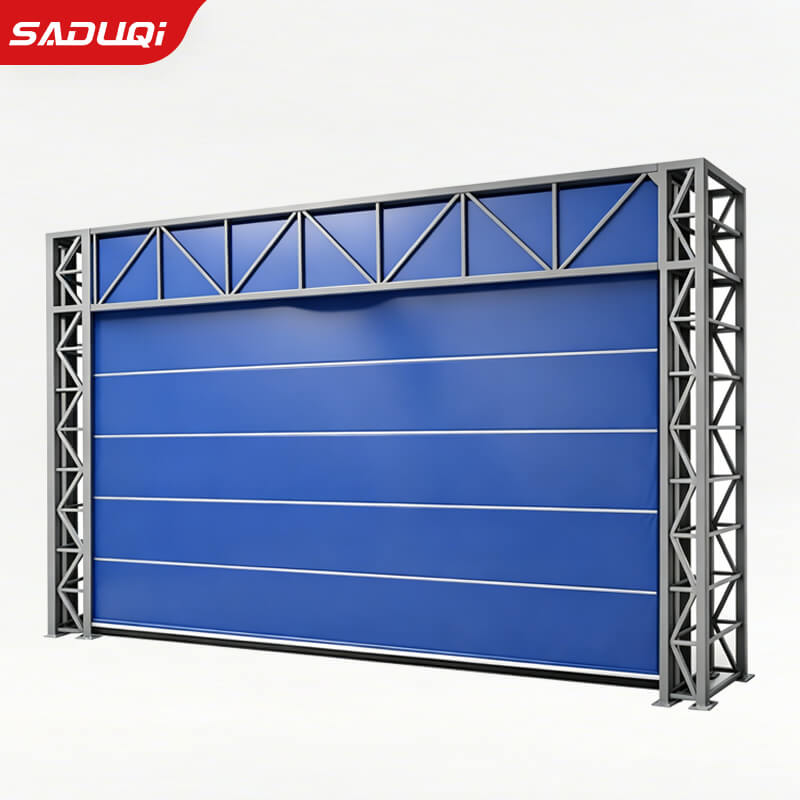

Flexible gates are mainly used for large span passage openings and are wind resistant up to class 12.
Flexible gates are used in a wide range of industrial environments and can be found in shipyards, large garages, paint shops and small hangars.

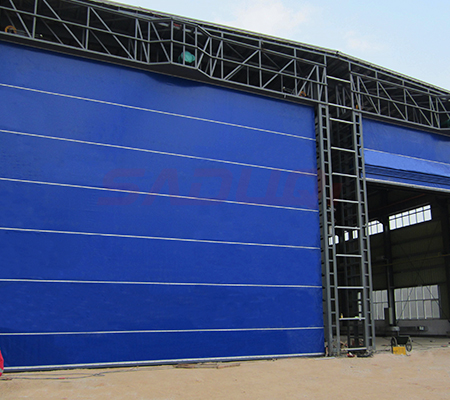

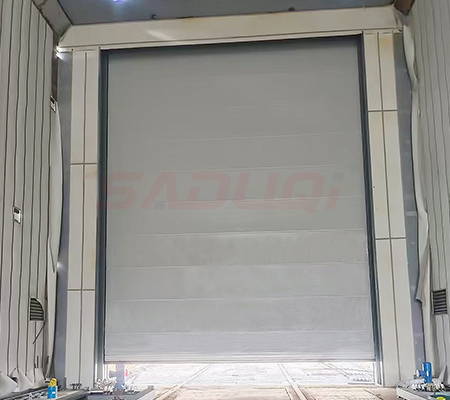

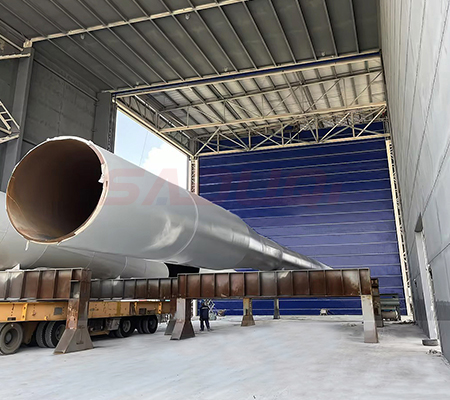

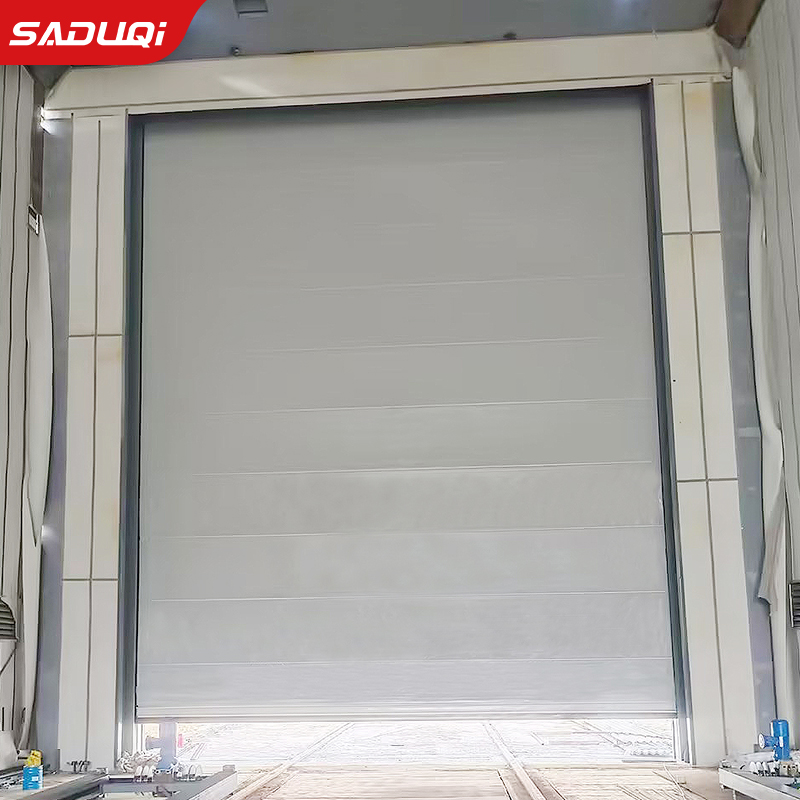

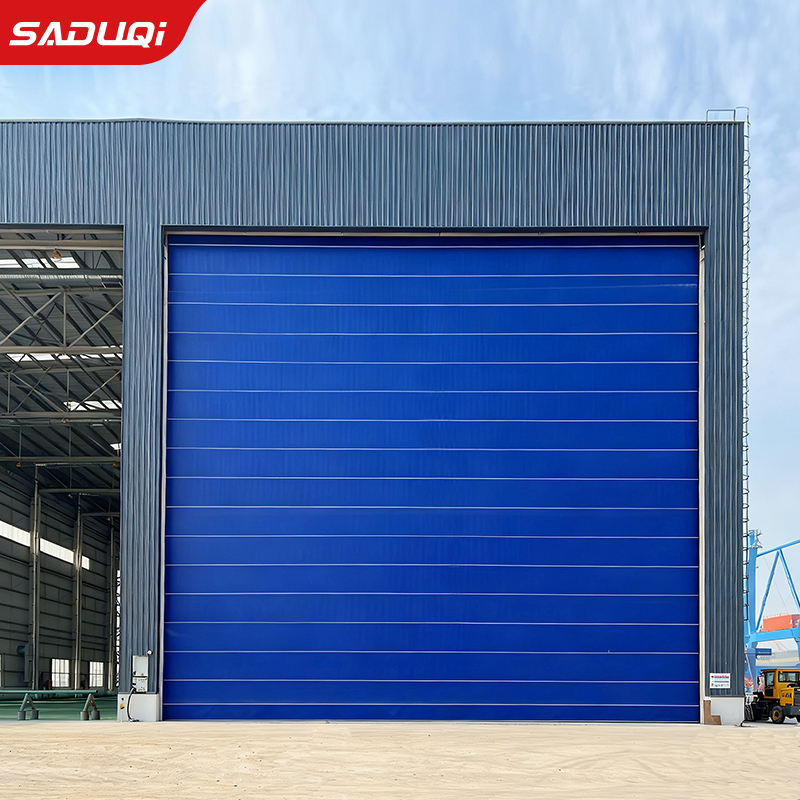

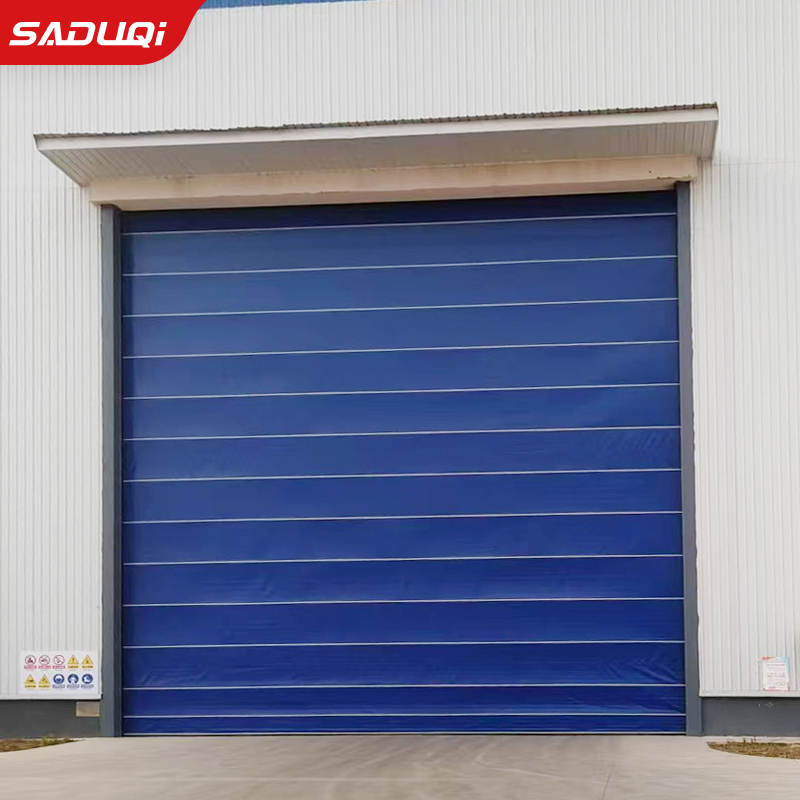

Relevant case
Technical Parametric
operating environment | Large doorways |
sizesSurface fabrics | Material thickness: 0.8mm |
Base Cloth Strips | Steel profile: 35mm*5mm*0.8mm |
Guide rails | 150*42 Duplex channel steel |
Drives | Voltage: 380V, Power: 5.5KW. Protection grade: 1P55 |
Lifting ropes | Direct:13.5-22mm, Installation factor:6x |
Main control appliances | PLC:Siemens, Limit switch:Schneider |
Guide wheels | High-strength nylon wheels, 65mm*45mm (6-8 per frame) |
If you have some questions? Or maybe you can find the answers here
Easy to install, once we cooperate，we will offer you related user manual or installation video. And you can contact our salesman if you have any question. Of course we can also send our engineer to your project site for installation guide if necessary.
Covered over 60countries on all the five continents.
Sure，we had done for many client within their own logo and design.
Within 10-15 days for trial order，for full container，depends on the quantity.
T/T, L/C at sight, Western Union or PayPal.
Order at least one set, but the more you buy，the more discount you can enjoy.
