Industrial sliding door, the door plate is made of double-layer sandwich hot-dipped galvanized steel plate with surface polyester process treatment, and the core material is polyurethane insulating heat preservation layer with a thickness of 42mm. the end face of the door body is configured with a box-type sealing edge, and the connecting hinges are mounted on the sealing edge so that the door body is embedded in the track. The bottom and top are fixed with top and bottom sealing strips and lateral sealing strips made of spherical vinyl resin along the width and height direction of the door to prevent wind, rain and infiltration.
The Sliding Door balancing system consists of torsion springs, winding wheels and rigid shafts and locking and fixing flanges, etc. The wheels are wound with steel cables, which are connected to the bottom of the door body with an anti-cable breakage device. Therefore, it is easy to lift the door body without motor in the balanced state.

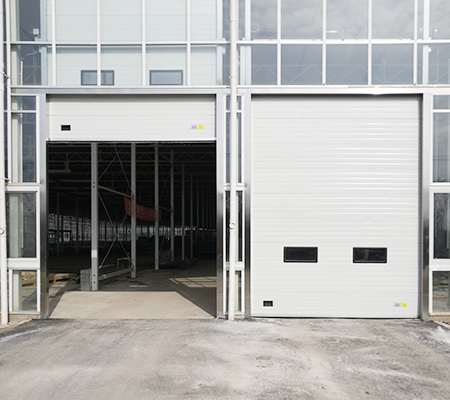

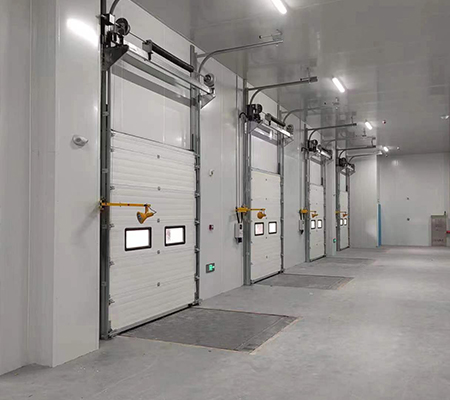

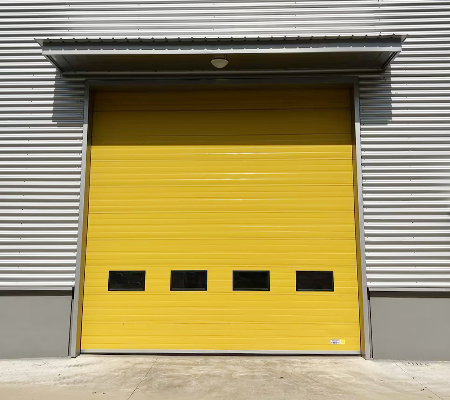

Relevant case
Excellent performance
1. Steel composite thermal insulation sliding door is widely used in industrial plants, logistics and transportation, commercial buildings, fire protection and other fields; the simple and upright appearance design is completely matched with the building facade;
2. Efficient opening and closing speed, lightweight and low noise;
3. Excellent thermal insulation performance;
Technical Parametric
Operating environment | Exterior Factory Doors |
Opening and closing speed | 0.25m/s |
Door curtain | Color coated steel or aluminum |
Door curtain | High-strength polyester fiber PVC door curtain, standard thickness 0.8mm, other thicknesses available |
Door thickness | Back ribbed door panel: 43+60mm, 43+90mm, 50+120mm |
Window | bilayer |
Personnel access gates | selectable |
Safety device | Standard, wire rope antibreakage protection device, torsion spring antibreakage protection device, wireless airbag |
Wind resistance | Standard 450 Pa, up to 700 Pa |
Safety device | Cordless safety bottom edge and rail safety protection photoelectric as standard |
Color | Standard colors: RAL9002 white gray, RAL9016 silver gray, RAL1023 yellow, RAL5005 blue, RAL3002 fire red special color customization |
Product advantage
| Standard Opening | Semi-vertical Opening |
The standard opening applies to condition that there is 450-530mm net sapce above the opening. h=450-530mm | The semi-vertical opening can fully take advantage of space above the opening. h≥600mm |
| Vertical Opening | Lowered Opening |
The vertical opening applies to condition that there is enough net space above the opening. h≥H+400mm | Lowered opening applies to condition that there is 300-450mm net space above the opening. h=300-450mm |
Product advantage
 |  |  |  |

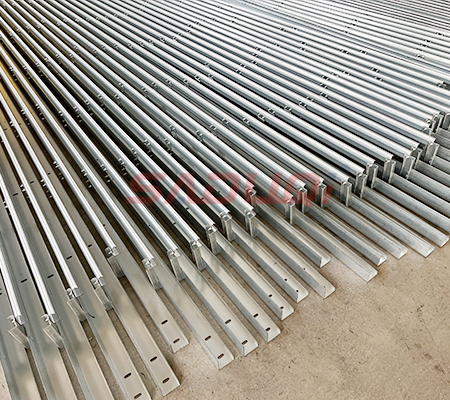

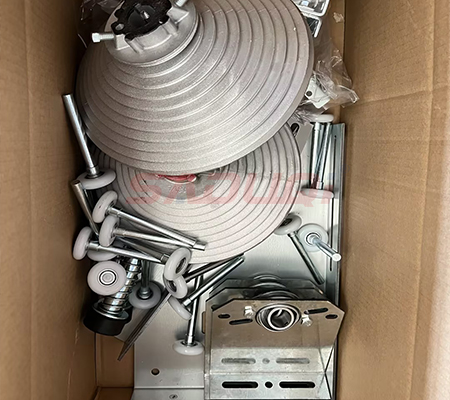

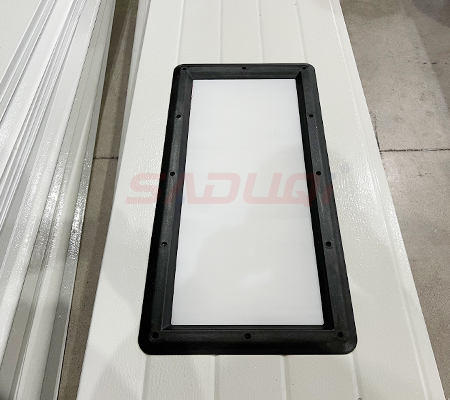

Transparent window | rail | Mounting fittings | Insulated door panel |

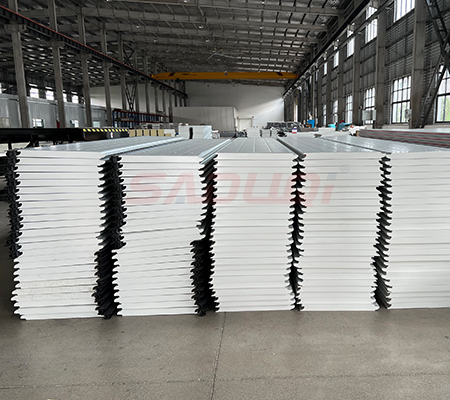

Production process
 |  |  |  |
 |  |  |  |
If you have some questions? Or maybe you can find the answers here
Easy to install, once we cooperate，we will offer you related user manual or installation video. And you can contact our salesman if you have any question. Of course we can also send our engineer to your project site for installation guide if necessary.
Covered over 60countries on all the five continents.
Sure，we had done for many client within their own logo and design.
Within 10-15 days for trial order，for full container，depends on the quantity.
T/T, L/C at sight, Western Union or PayPal.
Order at least one set, but the more you buy，the more discount you can enjoy.
